Rod Positioning Indicator (RPI)

A0677

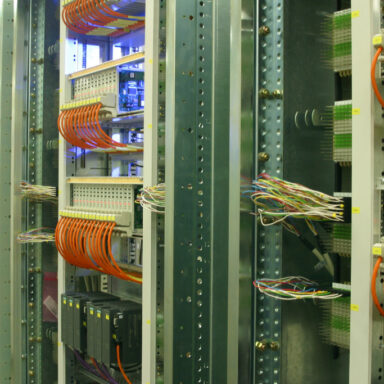

The Rod Position Indication (RPI) has to provide a continuous, precise and safe measurement of each drive rod position. RPI sensors and connecting lines are installed on Reactor Vessel Head and K1 qualified according to RCCE. Framatome RPI solution uses the highly reliable safety-classified TELEPERM XS (TXS). Each of the TXS-based RPI cabinets integrate power supply modules for sensors and complete conditioning of analog signals.
